Brodit tough sleeve LG G Pad F2 8.0 fixed install

Artikelnummer
759017
AVP incl. € 204,95
Gegevens

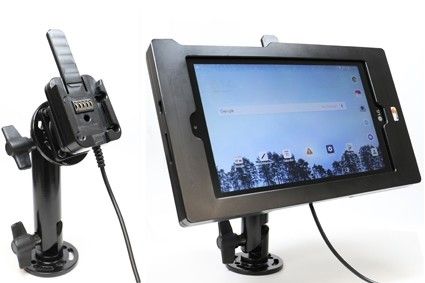

Deze "heavy duty" houder-lader is voorzien van een zeer robuuste behuizing voor uw tablet. De achterzijde van deze behuizing is voorzien van sleepcontacten. Zodra de behuizing in de houder geschoven wordt zal de tablet via de sleepcontacten worden voorzien van voeding.

De actieve MultiMoveClip is voorzien van een kabel met losse draadeinden voor vaste inbouw, 12/24V.

Inclusief draai-/ kantelmechanisme zodat de houder goed kantel-/ draaibaar is.

De tablet is inclusief de robuuste behuizing eenvoudig door middel van een schuifsysteem uit het voertuig mee te nemen. En vervolgens weer in een handomdraai te plaatsen. Het toestel hoeft niet uit de behuizing gehaald te worden en is dus optimaal beschermd.

Als eerste wordt de tablet in de robuuste behuizing geplaatst, welke voorzien is van geïntegreerde bumpers. Deze bumpers reduceren de trillingen en beschermen het toestel wanneer het zou vallen. Vervolgens kan de behuizing eenvoudig naar beneden toe over de MultiMoveClip worden geschoven. Het zal automatisch worden geladen.

De tablet bevindt zich stevig in de behuizing en kan alleen worden verwijderd door het losdraaien van diverse schroeven. Er is volledige toegang tot alle functies van de tablet.

Afmetingen behuizing: 245x147x22mm (BxHxD), gewicht is 472 gram.
Meer informatie
Meer informatie
Accessoiremerk Brodit
Barcode 7320287590173
Adviesverkoopprijs incl. BTW 204,95
Toestel houdertype Tablet Navigatie houder
Houder uitvoering Vaste installatie
Toestel houder kenmerk Toestelspecifiek, Tough Sleeve
Kleur.. Zwart
Voltage onbekend
Afsluitbaar nee
Productinfo Professionele houder met swivel (17° kantel- en 360° draaibare adapter).
Productinstallatie Monteer de houder op uw bestaande autospecifieke (of te selecteren) Brodit Proclip. in uw voertuig.
Product geschikt voor info Bij het tabblad Compatibility checkt u welk apparaat in deze houder past.

Deze info is met zorg door Global.nl samengesteld, heeft u feedback?.

Compatibility
Gerelateerde producten
Instructies

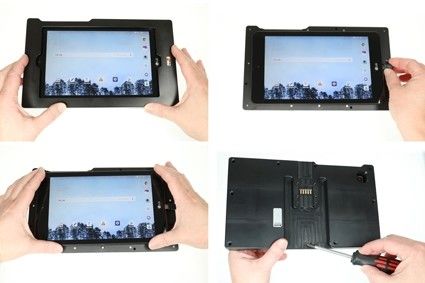

To place the device in the sleeve: Place the device onto the backpart of the sleeve. Carefully connect the charging connector to the device. NOTE: It is very important to hold the connector straight in front of the device and connect it straight into the device (if you angle the connector/place it askew into the device, you risk to damage the connector/device). Place the front part/frame over the device and attach it by screwing the enclosed screws into place on the back side of the sleeve. Place the short screw in the position shown in the picture and the long screws into the other predrilled holes. The device is now securely in place and can not be removed without loosening the screws.

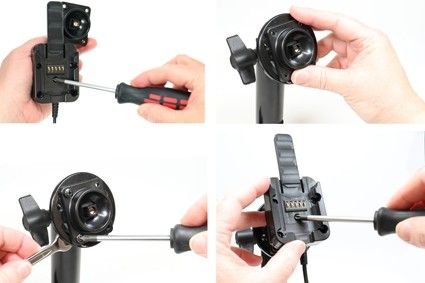

To install the active MultiMoveClip: Loosen the screw in the center of the Power Block so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position and screw it into place with the enclosed screws. Place the Power Block over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the MultiMoveClip is firmly in place, but still can be adjusted.

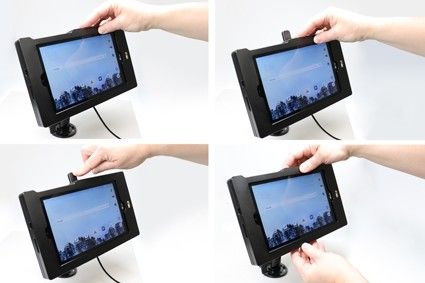

To place the sleeve onto the active MultiMoveClip: Place the sleeve above the Power Block and slide/press it straight downward into the Power Block so you hear/feel it snaps into place. The device is now connected to the charging. To remove the sleeve from the active MultiMoveClip: Press forward on the release arm on the Power Block so the sleeve is set free. Press/lift the sleeve straight upward, out from the Power Block.
The product is in place.
