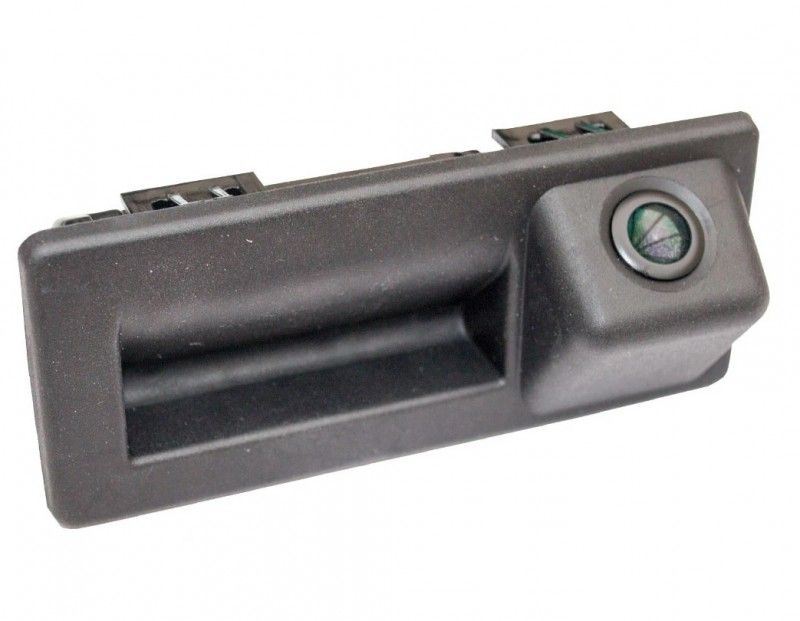

Boot handle camera Full HD 1080P - VAG; A4/Octavia/TCaddy

Gegevens

his reversing camera is specially dedicated for VAG vehicles. The inconspicuous, robust camera with Sony CCD lens simply replaces the trunk release handle. Just easy remove the existing trunk release handle and replace it with the reversing camera. The camera is complete including plug and play cable kit which allows easy plug and play installation. The camera is waterproof according to the IP67 certification level.



Remarks:

- The license plate lights of the above mentioned car models may vary.

- Check before you order the camera for the compatibility on the tab “Compatibility” or the model and the measurements of the camera match with the license plate light.

- Check by use of the picture if the mounting is the same as with the license plate light.





Measurements:

The dimensions are external. The camera has the following dimensions.

- Length: 110mm

- Width:  48mm



Features:

- 1/3” SONY CCD lens

- 600 TV lines

- Lens angle 170 degrees
- Waterproof according to IP67 certification level
- Black Light Compensation
- Display in mirror image
- Automatic color correction




The following is provided in the set:

- Audi reversing camera NTSC

- Video extension cable 5 meter (RCA)

- Installation manual





Additional information:

- With a multimedia interface or video interface it is possible to connect the camera with the original navigation system, ask for the possibilities.

- Concerns a high-end SONY CCD lens, so no cheap CMOS lens





Technical features:

- IP rating: IP68 (Water proof)

- Image Sensors : Colour 1/3"SONY CCD

- TV System: NTSC

- Effective Pixels: NTSC 752x582

- Sensing Area: 4.9 × 3.7 mm

- Horizontal Resolution: 600TV Line

- Horizontal Sync. Frequency: 15.625 / 15.734 kHz

- Vertical Sync. Frequency : 50/60 Hz

- Video output: 1Vp-p,75Ohm

- Gamma Consumption: 0.45

- Auto Gain Control: Automatic

- Back Light Compensation: Automatic

- S/N Ratio: Better than 48dB

- Lens Angle: 170 ° (Degrees)

- Current Consumption: 150mA

- Power Supply: DC +12V (10%)

- Operating Temperature: -20 C to +70 C

- Storage Temperature : -40 C to +80 C

- Connection: RCA

- Image: Mirror

Meer informatie

Meer informatie

Accessoiremerk	m-use vision
Barcode	8717091771284
Adviesverkoopprijs incl. BTW	149,00
Camera, Monitor eigenschap	IP genormeerd, Normaal beeld, Spiegelbeeld
Camera montage	Inbouw, Nabij nummerplaat
Camera video systeem	NTSC - US 60 Hz 30 fps
Camera connector	RCA / Cinch / Tulp connector (male)
Camera lens type	CCD (Sony)
Camera kijkhoek	170°
Voltage (input)	alleen 12V geschikt
Aanvullend product benodigd	Bekabeling via gerelateerde producten. Een monitor (hier te selecteren) completeert
Product geschikt voor info	Bij het tabblad Compatibility checkt u de auto's die geschikt zijn voor deze camera. Deze info is met zorg door Global.nl samengesteld, heeft u feedback?.
Veiligheid	Het gebruik van een camera(systeem) biedt een optimale veiligheid, u heeft beter (in)zicht in wat er zich rondom uw auto bevindt en u kunt daardoor ongelukjes en schade voorkomen.

Compatibility
