Brodit houder/lader Newland MT93 USB sig.plug-3A+usbC-boot

Artikelnummer
721417
AVP incl. € 143,95
Gegevens

With USB Type-C + cig-plug adapter with 2 USB ports: Type-A and Type-C. With tilt swivel. 12/24 Volt. For devices with original Boot/skin.

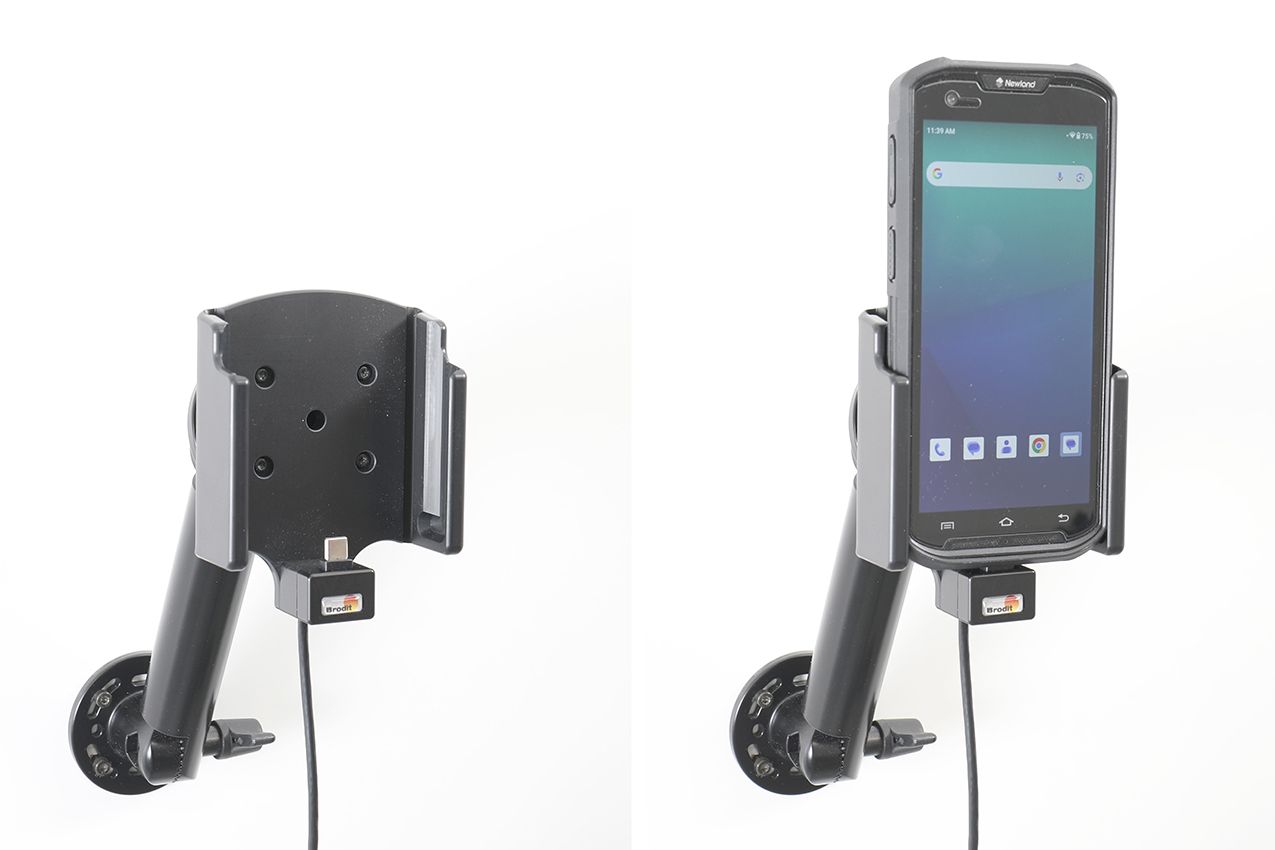

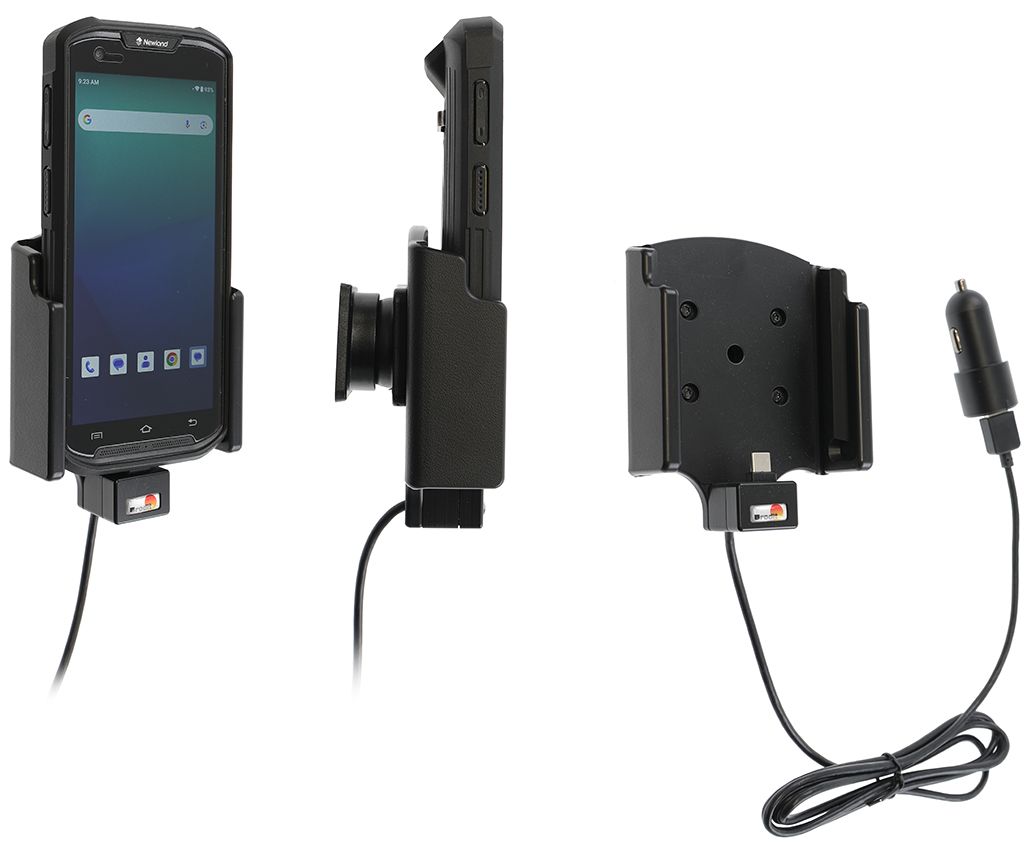

Keep your unit's battery fully charged in an active holder, always within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. With USB-C cable with cig-plug adapter, choose to connect either to the vehicle's USB-C outlet or the 12/24V socket. The cig-plug adapter has two USB ports: Type-A and Type-C. You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car.



The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a ProClip Mounting Platform or a Pedestal Mount.

Charging specifications

- Input voltage: DC12-24V 7A Max

- Output USB-A: 5V/3A, 9V/2A, 10V/2A, 12V/2.5A 30W Max

- Output USB-C: 5V/3A, 9V/2.77A, 12V/2.5A, 15V/2A, 20V/1.5A 30W Max

- In Total: 60W Max

- Approvals: CE, RoHS, FCC, UKCA

- Materials: Housing: aluminum alloy. Top plastic cover: fireproof PC




Meer informatie
Meer informatie
Accessoiremerk Brodit
Barcode 7320287214178
Adviesverkoopprijs incl. BTW 143,95
met case/skin/boot/frame ? ja
Houder kenmerk Toestelspecifiek
Kabel / Qi /lader type / connnector Sig plug + usbC
Toestel opladen via usbC
Voltage (input) 12/24V geschikt
Voltage (output) QC - QuickCharge
Max Amperage 3,0 Amp
Montage standaard AMPS
Afsluitbaar nee
Kleur zwart
Productinfo Professionele houder met swivel (17° kantel- en 360° draaibare adapter).
Compatibility
Instructies
1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.
4. The holder is in place.
