m-use wireless camera adaptor kit AHD-CVBS 9 -32V

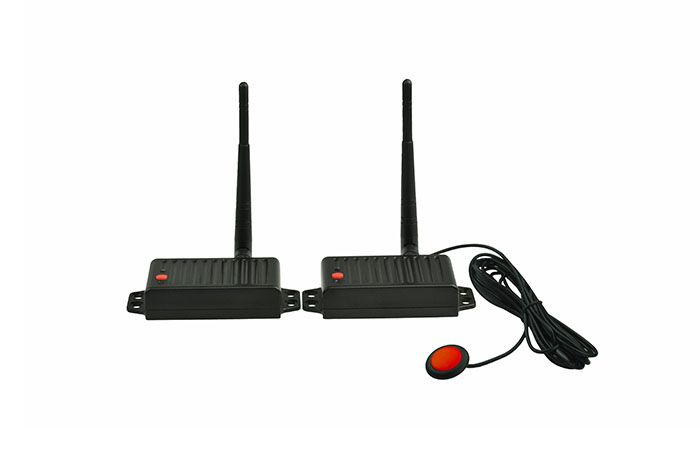

2.4G digital signal wireless transmitter and wireless receiver. The wireless receiver pairs automatically, which can go with different containers by researching the signal and reconnecting automatically. No wiring required, easy installation. Diversified and flexible product matching options according to user needs. The waterproof grade reaches IP69K, which is stable and durable!
|
TV System |
NTSC/PAL |
|
Video signal format type |
CVBS |
|
Video Output |
1.0vp-p，75ohm |
|
RF working frequency |
2.4-2.4835G |
|
RF Modulation Mode |
QPSK MD301RE，16QAM MD301SE |
|
Antenna Impedance |
50ohm |
|
Transmitted power |
18dBm |
|
Signal transmission distance |
100M |
|
Waterproof grade |
IP69 |
|
Vibration Rate |
10G |
|
Voltage input |
DC12V±10% |
|
Power |
1.2W/2.4W（IR-LED） |
|
Base battery power supply time |
Standard 8H/time；4H/time（IR-LED） |
|
Battery charging time |
Standard 5H/time |
|
Operation Temperature |
-30℃-70℃.RH95%Max |
|
Storage Temperature |
-30℃-70℃.RH95%Max |
|
|
| Accessoiremerk | m-use vision |
|---|---|
| Barcode | 8717091773912 |
| Adviesverkoopprijs incl. BTW | 289,00 |
| Camera connector | M-use 4-PIN connector (male), Wireless |
| Voltage (input) | 12/24V geschikt |
